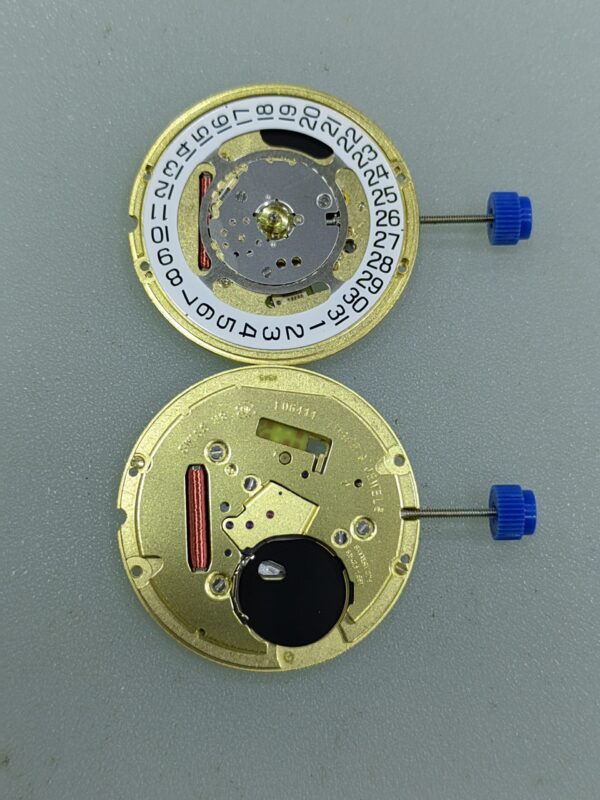

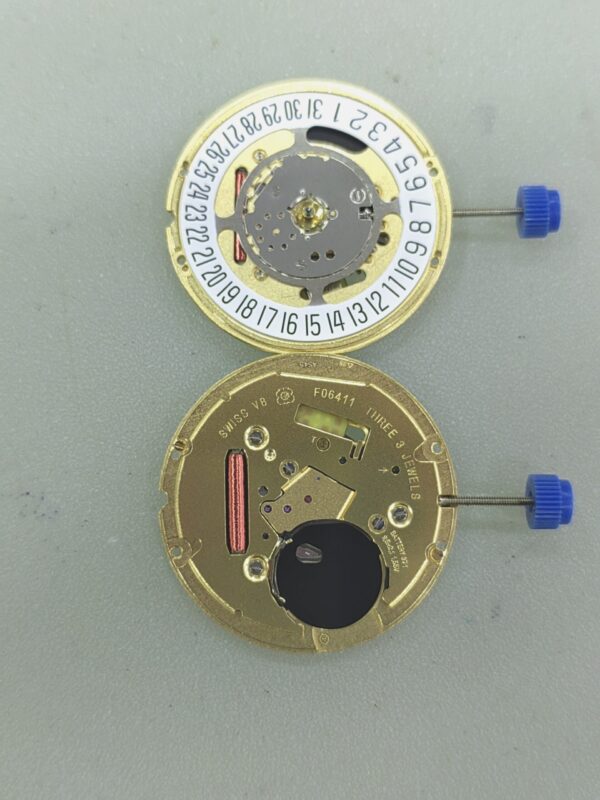

The ETA F06.411 Movement Can Replace the 955.112 Movement

1. Comparison of Core Parameter Compatibility

Analysis of Key Differences

1. Impact of Thickness Difference: Due to the temperature compensation module, the F06.411 is approximately 0.5-1.0mm thicker than the 955.112, which may lead to:
   • Reduced distance between the dial and the crystal, and in severe cases, possible pointer jamming;
   • Failure to close the case back normally, requiring milling of the case interior or replacement with an ultra-thin crystal (e.g., replacing mineral glass with 1.0mm-thick sapphire glass).
2. Requirement for Battery Compartment Modification: The SR920SW battery (9.5mm in diameter, 2.6mm in thickness) used by the F06.411 is significantly different in size from the SR621SW (6.8mm in diameter, 2.1mm in thickness) that the 955.112 may use. Modifications required include:
   • Replacing the battery clip to fit R371;
   • Checking whether the circuit contact pads are compatible, and welding adapter terminals if necessary.

2. Functional Compatibility & Performance Improvement

1. Comparison of Function Coverage

2. Advantages of Performance Upgrade

• Accuracy Upgrade: From the 955.112’s ±15 seconds/day (standard for ordinary quartz movements) to the F06.411’s ±5 seconds/day (chronometer-level standard), reducing the annual error from 5.5 seconds to 1.8 seconds;
• Battery Life Extension: Battery life extends from approximately 24 months (presumed for the 955.112) to 94 months (measured data for the F06.411), reducing battery replacement frequency by 75%;
• Environmental Adaptability: The temperature compensation range of -10℃ to 60℃ solves the problem of timekeeping deviation of traditional movements in extreme environments (e.g., increased error outdoors in winter).

3. Practical Operation Process & Risk Control

1. Preparatory Work

• Tool List: Movement seat diameter measuring ruler, pointer height gauge, battery compartment modification kit, water resistance tester (refer to ETA 2893 movement maintenance standards);
• Spare Parts Preparation: Battery clip adapted to the F06.411, ultra-thin crystal (if needed), movement fixing screws (M1.4 specification);
• Parameter Confirmation: Measure the fixing pin spacing of the 955.112 (usually 20.0mm or 22.5mm) and compare it with the F06.411. If the deviation exceeds 0.3mm, a custom adapter bracket is required.

2. Step-by-Step Installation Guide

1. Case Preprocessing:
   • Measure the depth of the movement compartment with a micrometer. If it is less than 3.5mm (maximum thickness of the F06.411), use a micro milling cutter to deepen it by 0.5-1.0mm (professional equipment operation required);
   • Clean residual fixing glue or rust in the movement compartment to avoid affecting movement fixing.
2. Battery Compartment Modification:
   • Remove the original battery clip and weld a metal clip adapted to R371 (ensure correct positive and negative polarity);
   • Wrap the inner wall of the battery compartment with insulating tape to prevent short circuits.
3. Movement Installation & Calibration:
   • Before installing the movement, test the hacking function (pull the crown to the second position and confirm that the second hand stops completely);
   • When fixing the movement, tighten the screws diagonally (torque controlled at 0.8-1.0N·m) to avoid movement deformation;
   • Calibrate the date switching time: Use a timegrapher to observe and ensure the date jumps within ±30 minutes of midnight.
4. Water Resistance Restoration:
   • Replace the case gasket (nitrile rubber is recommended, suitable for 200-meter water resistance standards);
   • After installing the case back, test the pressure with a water resistance tester (maintain pressure at 20 bar for 5 minutes, no leakage allowed).

3. Common Risks & Solutions
